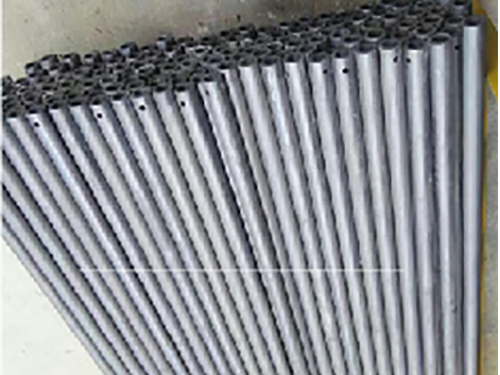

Silicon carbide tube

  • Finished product characteristics

    ● High strength ● High hardness ● High wear resistance ● High temperature resistance ● High corrosion resistance, ● good heat and shock resistance ● High thermal conductivity and high oxidation resistance Excellent performance

  • Product characteristics

    1, the maximum tolerable temperature in argon or nitrogen environment is 1350℃.

    2, the highest tolerable temperature in the air is 1380℃.

    3, lithium electric sintering furnace roller

    4, can withstand 3000℉ high temperature without significantly reducing the strength of the material;

    5, its high thermal conductivity is five times that of stainless steel. Special wear resistance - 1.5 times that of tungsten carbide. 6, silicon carbide protection pipe can be used as industrial chemical transport pipe.

  • Precision machining

    1. High purity silicon carbide powder

    2. Open mold processing: dry pressing, CIM injection molding, isostatic pressing.

    3. Appearance processing: surface grinding, outer diameter/inner diameter grinding, fine engraving machining, grinding, polishing grinding.

  • Application field

    ● New energy ● Ceramics ● Magnetic materials ● Glass ● Metallurgy ● Powder materials ● Rare Earth chemical industry ● Electronic components ● Metal processing ● Refractory materials ● High temperature industrial equipment such as scientific research institutes

    • Basic characteristic Main ingredient purity(wt%) 99
    colour black
    density(g/cm³) 1350
    hydroscopicity(%) 0
    Mechanical characteristic Modulus of elasticity GPa 450
    Compressive strength(MPa) 224
    Bending strength(MPa) 400
    Poisson's ratio 0.14
    Vickers hardness(GPa) 30
    Thermal characteristic Hottest operating temperature(℃) 1600
    Coefficient of thermal expansion(1/℃×10-6) RT~500℃ 3.9
    RT~800℃ 4.3
    Thermal conductivity(W/m x K) 40
    Thermal shock resistance△T(℃) 300
    Electrical characteristic Volume resistivity 25℃ 3x10 to the sixth power
    Dielectric constant 10GHz
    Customized process
    • 1

      By product

      Application requirement

    • 2

      Design and research

      Optimization scheme

    • 3

      Strict essence

      Precision drawing

    • 4

      piggyback

      Select ingredients

    • 5

      Multiple forming

      Fired blank

    • 6

      Grinding and polishing

      Precision machining

    • 7

      Multiple gage

      Professional survey

    • 8

      Qualified product

      Package and ship
