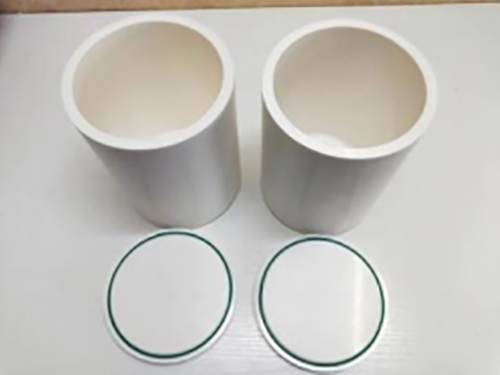

Zirconia ball mill tank

  • Finished product characteristics

    ● High hardness, high toughness, high bending strength, high wear resistance, low friction coefficient, good insulation, no static electricity, no pollution, impact resistance, long life

  • Product characteristics

    ● 3Y, 5Y, 8Ymol yttrium stabilized zirconia powder, isostatic pressing, high temperature sintering, high density of finished products, short precision processing cycle, suitable for all kinds of sample grinding ● 50ML, 100ML, 250ML, 500ML, 1L, 2L. The above size is conventional size, special specifications can be customized.

  • Precision machining

    1. 3Y, 5Y, 8Ymol yttrium stabilized zirconia zirconia powder

    2. Open mold processing: dry pressing, CIM injection molding, isostatic pressing.

    3. Appearance processing: surface grinding, outer diameter/inner diameter grinding, fine engraving machining, grinding, polishing grinding.

  • Application field

    ● Planetary grinding machine ● Scientific research institutes ● Lithium battery materials ● Refractory materials ● Precious metals ● Electronic materials ● Magnetic materials ● Color coatings ● Chemical materials and other fields

    • Material zirconia Fracture toughness MPam1/2 8 Modulus of elasticity Gpa 200
    Hardness (HV) 1350 colour white Poisson'sRatio 0.3
    Thermal Expansion Coefficient (10-6°c) 10 Water absorption(%) <0.01 Component content(%) ZrO₂ ≧95
    Firing temperature 1550-2600 Compressive strength Mpa 2000 Dielectric constant(1MHZ) 28
    Temperature resistance(°C) 1800 hardness Hra 88.8 Mirror polishing(Ra) ≦ 0.05
    Specific Gravity(g/cm3) 6.05 Volume resistance (cm) > 1012 Thermal conductivity (W/m x K) 5
    Flexural Strength (MPa) 800-1000 coarseness(um) ≦ 0.8 Thermal shock resistance△T℃ 400
    Customized process
    • 1

      By product

      Application requirement

    • 2

      Design and research

      Optimization scheme

    • 3

      Strict essence

      Precision drawing

    • 4

      piggyback

      Select ingredients

    • 5

      Multiple forming

      Fired blank

    • 6

      Grinding and polishing

      Precision machining

    • 7

      Multiple gage

      Professional survey

    • 8

      Qualified product

      Package and ship
